Bitmain Antminer AMP-H20-3U Hydro Cooling Support (12 Asic Miners)

The Hydro Cooling Suite AP-H20-3U is a high-efficiency water cooling solution designed for Antminer U3S21EXPH and S23 Hydro 3U miners. This scalable cooling system supports up to 12 units, making it ideal for mid-to-large-scale mining operations.

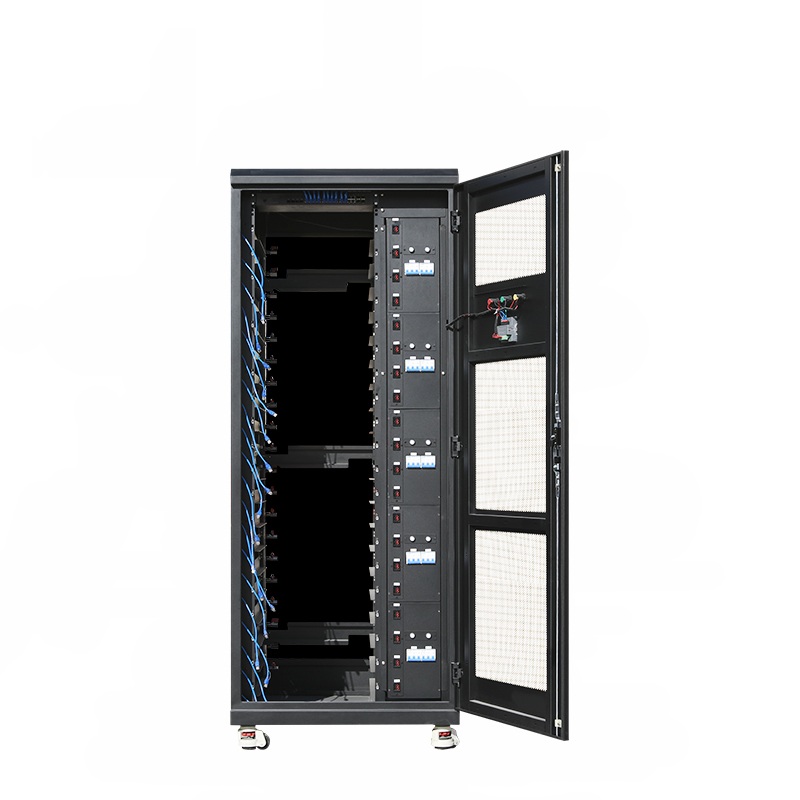

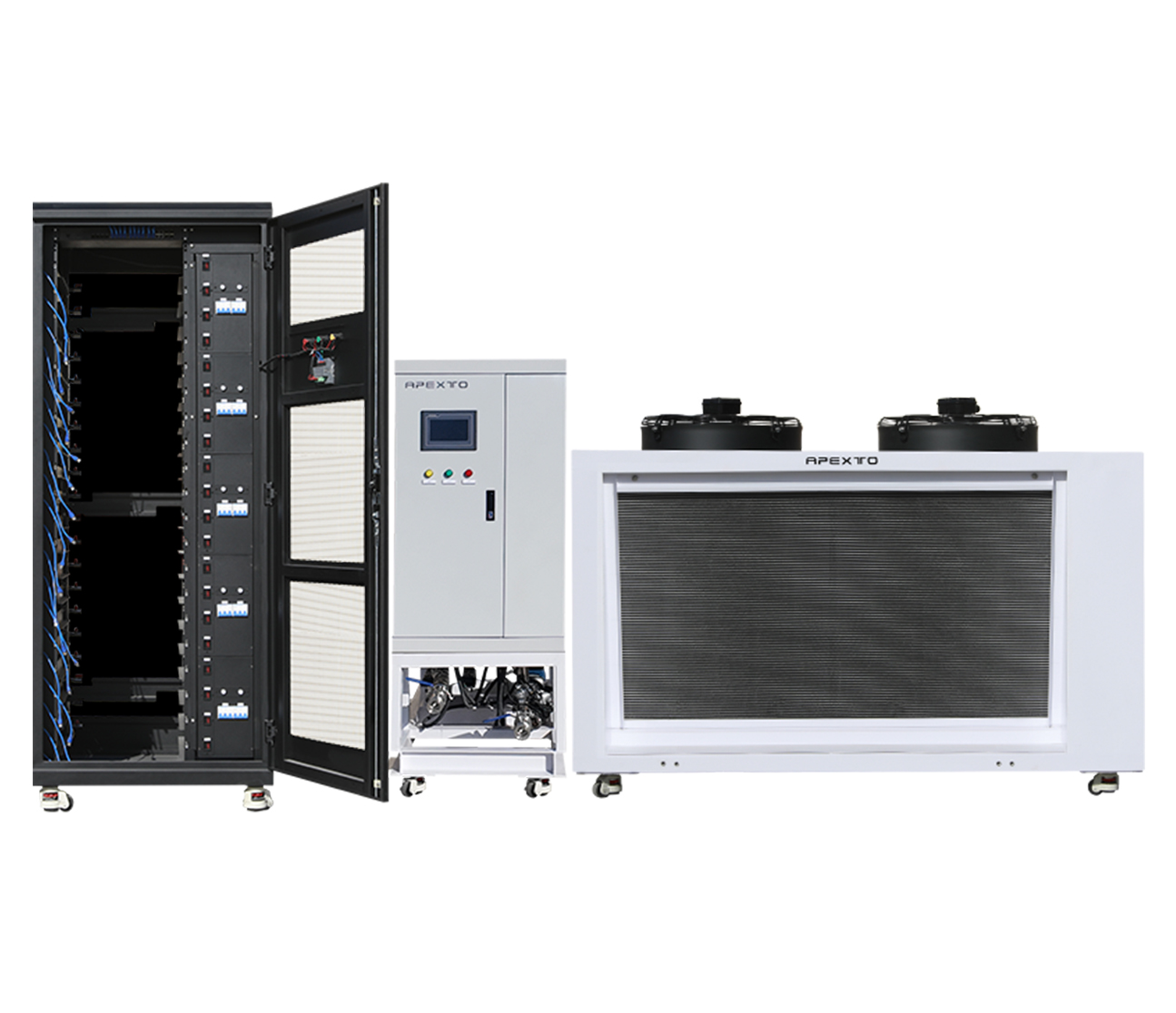

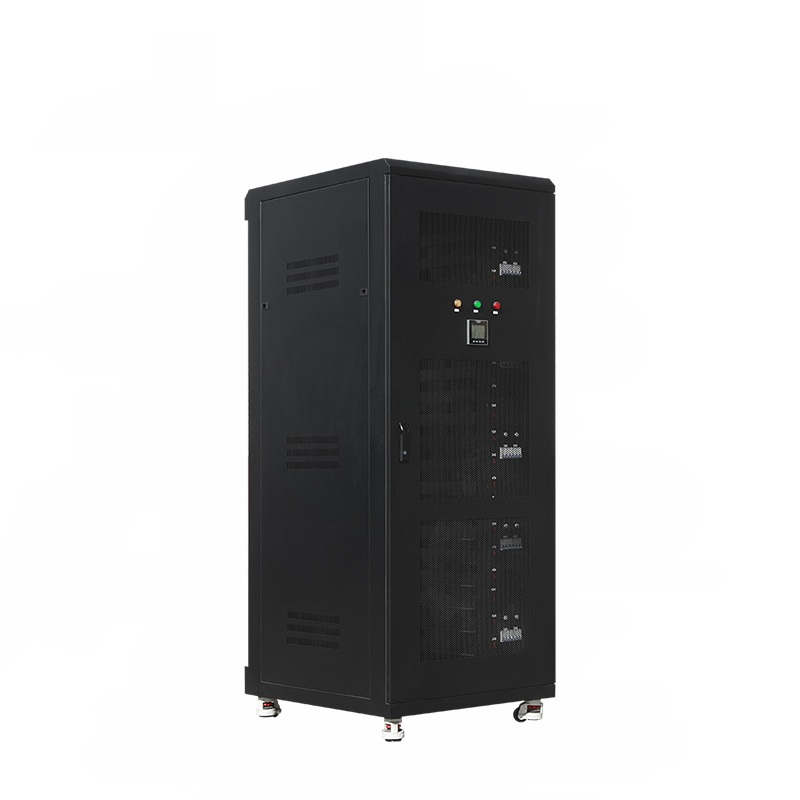

Equipped with a hydro cooling cabinet, dry cooling tower, and pump station, the AP-H20-3U efficiently manages heat using circulating deionized water, ensuring stable and optimal miner performance. Its advanced cooling technology helps prevent overheating, improving both energy efficiency and hardware longevity.

Designed for industrial-scale and high-density mining, this solution optimizes space, cooling capacity, and operational reliability. By integrating the AP-H20-3U, miners can achieve enhanced efficiency, lower energy costs, and prolonged miner lifespan, making it a smart investment for long-term cryptocurrency mining success.

Cooling Solutions for Mining Operations

Heat Recovery System

Our product also offers a heating version. For heating needs, we provide a customized CDU (Cooling Distribution Unit) integrated into the pump station. This versatile solution delivers efficient, sustainable, and reliable heating performance, making it suitable for a wide range of applications.

Specifications

1. AP-H20-3U Tank & Dry-Cooler

Model	AP-H20-3U
Heat Dissipation Capacity	200kW
Miners Capacity	12 * Antminer U3S21EXPH & S23 Hydro 3U
Circulation Mode	Single Mode / Dual Mode
Dimensions	120cm(L) * 70cm(W) * 180cm(H) (CABINET)

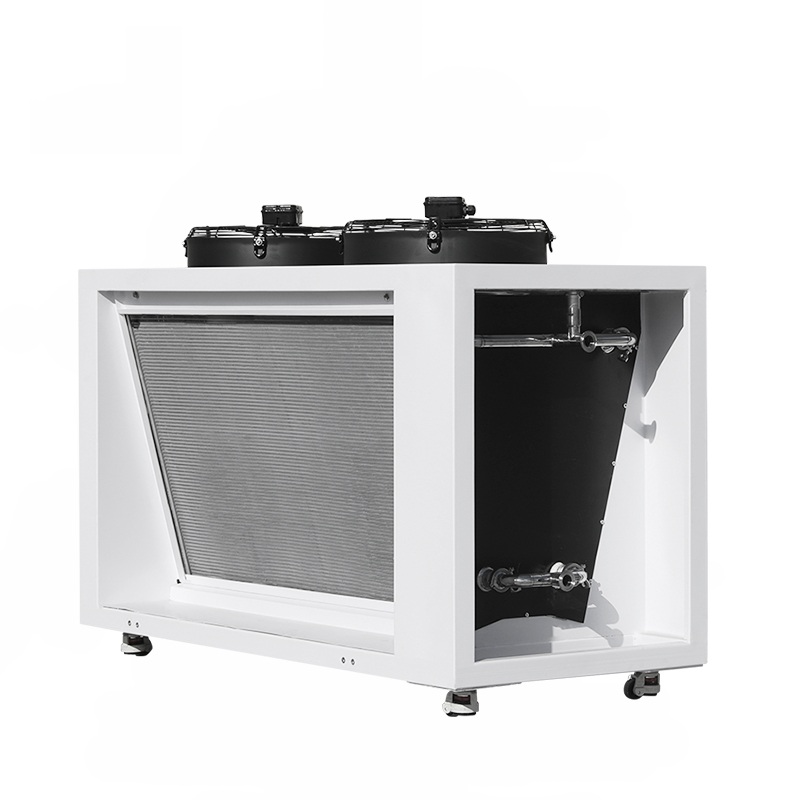

	260cm(L)*135cm(w)*180cm(H)(DRY COOLER)
Weight	240KG (CABINET) 320KG (DRY COOLER)
Coolant	Pure Water / Soft water + Antifreeze + Corrosion Inhibitor
Max Inlet/Outlet Temp	50 / 60 °C
External Cooling	Dry Cooler
Fluid Flow Rate	20 m³/h
Max Power Load	200kW
Input Voltage	3 Phase 380-480V 50/60Hz
Output Voltage	3 Phase 380-480V 50/60Hz
Monitoring and Management	1. Smart PDU 2. PLC Control System
Ambient Temp	-25°C ~ 45°C
Design Pressure	0.3 MPa
Certification	CE
Extras	High-Quality Water Pump / All Stainless Steel / EPDM Hose / Quick Connector

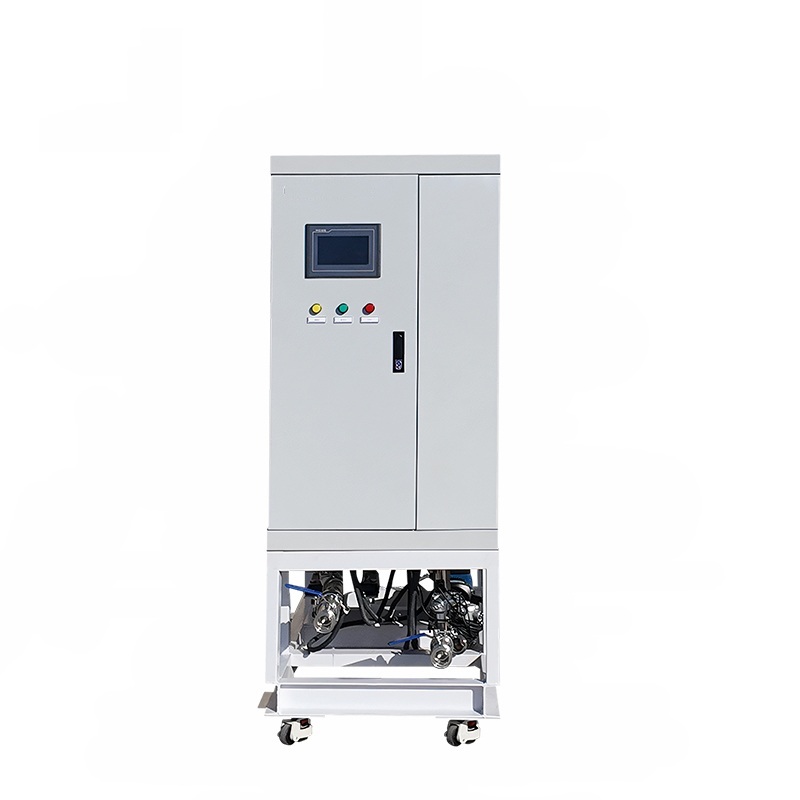

2. AP-H20-3U CDU

Model	AP-H20-3U CDU
Power (Main pump power)	4.75KW
Rotational speed	2900 r/min
Power (Auxiliary pump power)	0.55KW
Fluid Flow Rate	20 m³/h
Circulation Mode	Single Mode / Dual Mode
Dimensions	120cm(L) * 70cm(W) * 180cm(H) (CDU)
Weight	350KG (CDU)
Coolant	Pure Water / Soft water + Antifreeze + Corrosion Inhibitor
Max Inlet/Outlet Temp	40 / 50 °C
Input Voltage	3 Phase 380-415V 50/60Hz
Output Voltage	3 Phase 380-415V 50/60Hz
Monitoring and Management	1. Smart PDU 2. PLC Control System
Ambient Temp	-25°C ~ 45°C
Design Pressure	0.3 MPa
Certification	CE
Extras	High-Quality Water Pump / All Stainless Steel
