Bitmain ANTRACK V2
✓ Miner Capacity: 4 Units ANTMINER Hydro Miners

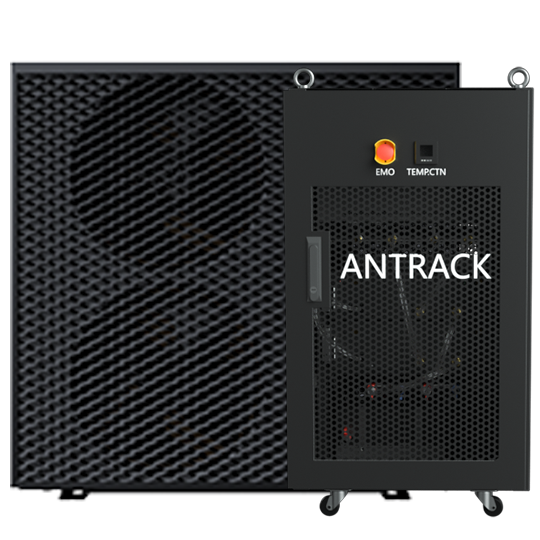

Bitmain ANTRACK V2 is a hydro cooling cabinet supporting 4 Antminer hydro miners (AHM) or 2 server miners (RACK483). It features a split design with a heat pump and a 24kW max load, ensuring efficient cooling and high performance.
$6,199
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
Standart Shipping
DHL, UPS and FedEx
6-10 Days
Free
Express Shipping
DHL , FedEx dan Global Express
3-4 Days
$149
Description
The ANTRACK V2 is a high-performance hydro cooling cabinet designed for cryptocurrency mining. It supports up to 4 Antminer hydro miners (AHM) or 2 server miners (RACK483), ensuring efficient and stable operation.

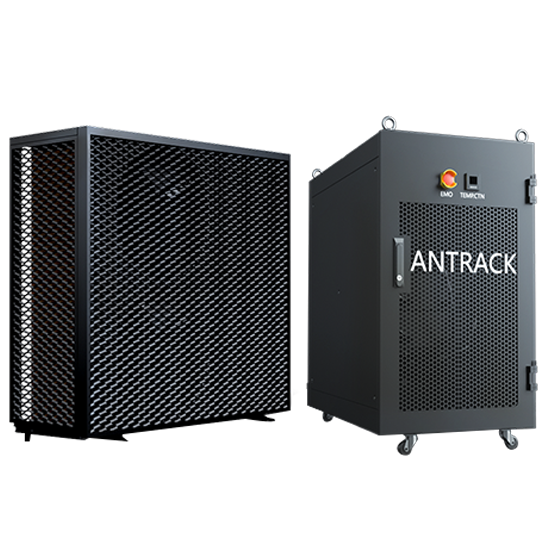

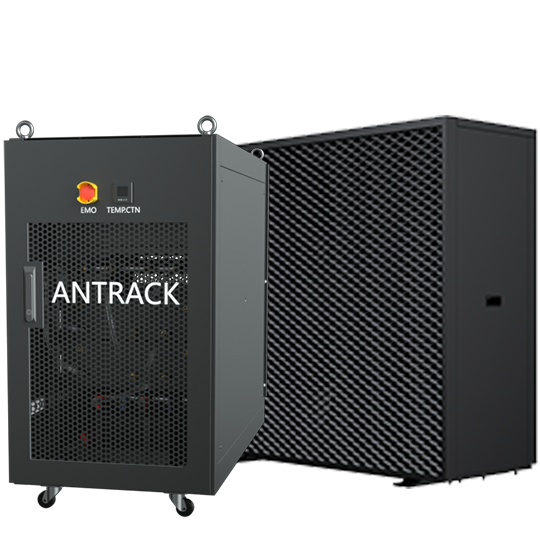

The ANTRACK V2 is divided into two sections: the cabinet side and the heat pump side.
The cabinet side features a power control switch, heat exchanger, and components that provide a stable environment for hydro miners.
The heat pump side includes a compressor and dry cooler, ensuring efficient heat dissipation and stable year-round operation.
With a 24kW cooling capacity, 400W water pump power, and a split design, the ANTRACK V2 optimizes mining efficiency while maintaining ideal temperature control.
Product Advantages
-
Modular Design: Separates the cabinet and heat pump for flexible deployment, enabling both heating and efficient cooling.
-
Integrated System: Built-in power module, heat exchanger, and water distribution pipes ensure a stable environment for hydro miners.
-
Smart Control: Features a high-efficiency compressor and dry cooler with one-click mode switching for precise temperature management and energy efficiency.
-
High-Temperature Heating: Delivers up to 80°C hot water, recovering mining waste heat for regional heating.
-
Quick Deployment: Compact design for easy installation and mobility; plug-and-play operation.
-
Flexible Installation: Suitable for indoor or outdoor use, adapting to different environments.
-
Strong Compatibility: Supports both hydro miners and server configurations.
-
Multi-Functional: Provides both heat dissipation and heating with seamless switching.
Waste Heat Recovery
ANTRACK V2, paired with hydro miners (AHM or RACK483 models), provides up to 80°C heating, making it ideal for:
Specifications
Product Glance
| Model | ANTRACK |
| Version | V2 |
| Capacity | 4 units ANTMINER (Hydro) or 4 units ANTMINER (U2 Hydro) or 2 units ANTMINER (U3 Hydro) |
| Maximum load,kW | 24 |
Part 1: Mining Cabinet
Hardware Configuration
| Size (Length*Width*Height), mm (without package) | 1200*600*1300 |
| Size (Length*Width*Height), mm (with package) | 1460*1330*780 |
| Net weight, kg (without package) | 130 |
| Gross weight, kg (with package) | 185 |
| Network connection mode | RJ45 Ethernet 10/100M |
Power Supply
| Power supply AC Input voltage, Volt(1-1) | 380~415V AC |
| Power supply AC Input Frequency Range, Hz | 50~60 |
| Power supply AC Input current, Amp(1-2) | 63 |
Water pump
| Rated power, W | 450 |
| Noise, dBA@1m | 60 |
| Lift, m | 19 |
| Size (Length*Width* Height), mm | 360*210*268 |
Plate heat exchanger
| Maximum heat exchange power, kW | 30 |
| Size (Length*Width* Height), mm | 305*106*64 |
| Diameter of water pipe connector, mm | DN20 |
Part 2: External Cooler
Hardware Configuration
| Size (Length*Width*Height), mm (without package) | 1160*1035*1570 |
| Size (Length*Width*Height), mm (with package) | 1310*1185*1770 |
| Net weight, kg (without package) | 380 |
| Gross weight, kg (with package) | 432 |
Power supply
| Power supply AC input voltage, Volt(1-1) | 380~415V AC |
| Power supply AC input frequency range, Hz | 50~60 |
| Maximum power supply AC input current, Amp(1-2) | 63 |
Heat pump
| Heating Capacity (typical), kW | 32 |
| Compressor Input (typical), kW | 8 |
| EER (typical) | 3 |
| Sound Level, Db(A) | 77 |
| Refrigerant | R134a |
| Heating water outlet temperature, °C | 80 |
Fan
| Rated power, W | 1900 |
| Noise, dBA@1m | 74 |
| Size (Length*Height*Thickness), mm | 1010*1010*369 |
Water pump
| Rated power, W | 370 |
| Noise, dBA@1m | 74 |
| Size (Length*Width* Height), mm | 328*205*461 |
Environment Requirements
| Ambient temperature, °C | -20~40 |
| Water flow, L/min | 32.0~40.0 (Cabinet side) |
| Water pressure, bar | ≤3.5 |
| Working fluid(1-4) | Antifreeze (10%) |
| Installation distance, m(1-5) | 50 |
| Liquid PH | 7.8~8.5 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
